3832 EX



Next-Gen AI Network Switching - Faster, Smarter, Secure
Support 32 Ports of 400G - Software Configurable for Alternative Port Speeds
Features the World's only Open ISA Programmable Ethernet Switch
Elite Timing Support - Compliant with Precision Timing Standards for Synchronized, Deterministic Networking



AI Optimized Accelerated Computing Switch

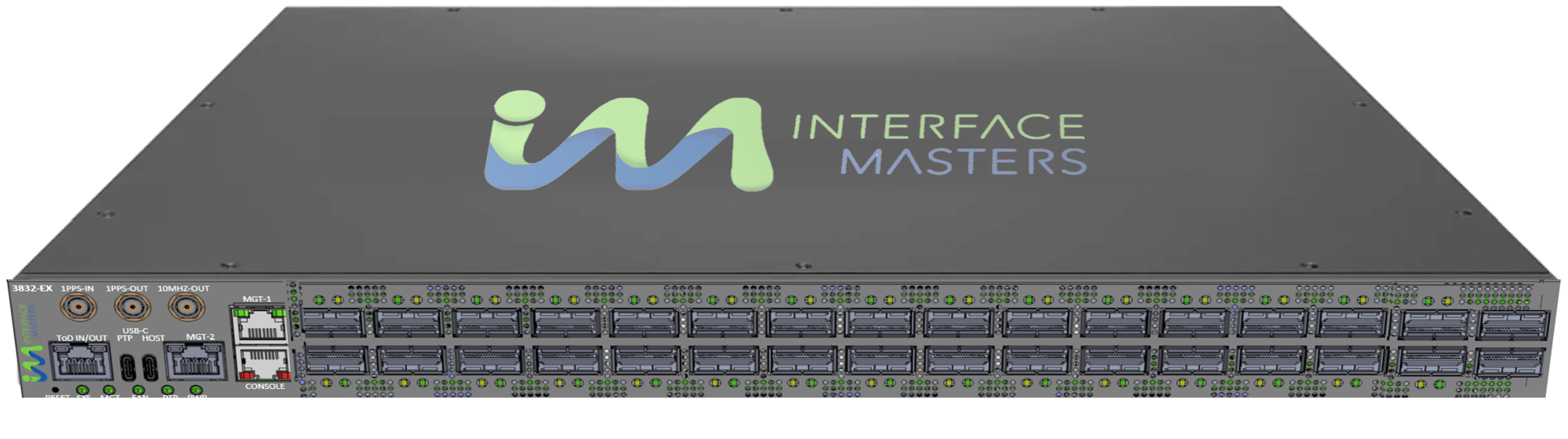

3832 EX

3832 EX



The 3832 EX delivers transformative advantages for AI, cloud, and hyperscale data center environments:

  • Ultra-Low Power Efficiency: Achieves up to 40% lower power consumption compared to conventional 12.8T switches, significantly reducing operational costs.
  • Advanced Programmability: Built on a fully programmable SDN architecture, enabling tailored packet processing and dynamic network policy control.
  • Minimized Tail Latency: Powered by X-IQ™ intelligent queuing, which reduces delays and accelerates flow completion times—critical for AI workloads.
  • Real-Time Telemetry: X-View™ congestion avoidance technology offers deep, real-time visibility into network performance and health.
  • AI Fabric Optimization: Engineered to meet the demands of high-throughput, low-latency AI infrastructure.
  • Elite Timing Support: Compliant with precision timing standards for synchronized, deterministic networking.

Features

3832 EX



3832 EX



  • Next-Gen AI Network Switching - Faster, Smarter, Secure
  • Support 32 Ports of 400G - Software Configurable for Alternative Port Speeds
  • Features the World's only Open ISA Programmable Ethernet Switch
  • Elite Timing Support - Compliant with Precision Timing Standards for Synchronized, Deterministic Networking
AI Optimized Accelerated Computing Switch





Advanced Features



Xsight Labs X2 Switch Fabric

  • Industry-Leading Performance: The Xsight Labs X2 delivers 12.8 Tb of switching capacity with a fully software-defined pipeline and logic architecture.
  • Advanced Switching Core: Programmable data plane, Queue Management (QM), PF-TCAM: (PKT Filtering Ternary Content Memory)
  • Versatile Table Support: Lookup tables: hash, longest prefix match (LPM), direct-access, TCAM Counters
  • High-Level Language Control: Enables flexible and efficient configuration of network behavior. Shared Ingress/Egress Pipelines: Streamlined architecture for optimized traffic flow.
  • Intel-Based Control Plane: Powered by an Intel 8-core 2.2GHz processor for robust management and orchestration.

Software

  • SONiC (Software for Open Networking in the Cloud)
  • Support available for Linux, DPDK, SPDK and XDP
  • OpenBMC and Redfish Integration

Other

  • Optional PTP boundary clock supporting G.8275.1, G.8275.2, SMPTE ST2059-2, AES67, IEEE1588 (V2.0 and V2.1), with dedicated timing inputs.
  • Titanium efficiency redundant hot-swappable power supplies, port-to-power & power-to-port, AC/DC
  • Redundant hot-swappable fans
  • Securely Designed and manufactured in US.

Specifications

Environmental
Operating Humidity 5% - 95%, non-condensing
Operating Temperature -5°C to 40°C (23°F - 104°F)
Dimensions
Dimension Inches Millimeter
Length 24.00 609.60
Height 1.75 44.45
 Width 17.15 435.61

Applications

The 3832 EX delivers transformative advantages for AI, cloud, and hyperscale data center environments.



3832 EX

Ordering Information

Part Number Description

3832-EX-XX-Y

3832 EX 32x400G network ports, Intel 8C 2.2GHz control plane CPU, 2TB SSD, 48GB RAM and redundant hot-swappable fans and power supplies.

3832-EX-T-XX-Y

3832 EX 32x400G network ports, Intel 8C 2.2GHz control plane CPU, 2TB SSD, 48GB RAM and redundant hot-swappable fans and power supplies. Includes factory installed timing module.

XX

Instead of XX change to AC for AC PSU or DC for DC PSU options

Y

Instead of Y change to F for port-to-power airflow or B for power-to-port airflow options.

Transceivers

Please check with us for suitable 112G multi-mode and single-mode transceiver options

Support

Support options available for both hardware and software

Download 3832 EX Product Brief
